Spark Engine

This article mainly introduces the installation, use and configuration of the Spark engine plugin in Linkis.

1. Preliminary work#

1.1 Engine installation#

If you wish to use the spark engine on your server, you need to ensure that the following environment variables are set correctly and that the engine's starting user has these environment variables.

It is strongly recommended that you check these environment variables for the executing user before executing a spark job.

Environment variable name	Environment variable content	Remarks
JAVA_HOME	JDK installation path	Required
HADOOP_HOME	Hadoop installation path	Required
HADOOP_CONF_DIR	Hadoop configuration path	required
HIVE_CONF_DIR	Hive configuration path	required
SPARK_HOME	Spark installation path	Required
SPARK_CONF_DIR	Spark configuration path	Required
python	python	It is recommended to use anaconda's python as the default python

1.2 Environment verification#

Verify that Spark is successfully installed by pyspark

pyspark
#After entering the pyspark virtual environment, the spark logo appears, indicating that the environment is successfully installedWelcome to      ______     /__/__ ___ _____/ /__    _\ \/ _ \/ _ `/ __/ '_/   /__ / .__/\_,_/_/ /_/\_\   version 2.4.3      /_/
Using Python version 2.7.13 (default, Sep 30 2017 18:12:43)SparkSession available as 'spark'.

2. Engine plugin installation default engine #

The Spark engine plugin is included in the binary installation package released by linkis by default, and users do not need to install it additionally.

In theory Linkis supports all versions of spark2.x and above. The default supported version is Spark2.4.3. If you want to use another version of spark, such as spark2.1.0, you just need to modify the version of the plugin spark and compile it. Specifically, you can find the linkis-engineplugin-spark module, change the value of the <spark.version> tag in the maven dependency to 2.1.0, and then compile this module separately.

EngineConnPlugin engine plugin installation

3. Using the `spark` engine#

3.1 Submitting tasks via `Linkis-cli`#

# codeType correspondence py-->pyspark sql-->sparkSQL scala-->Spark scalash ./bin/linkis-cli -engineType spark-2.4.3 -codeType sql -code "show databases"  -submitUser hadoop -proxyUser hadoop
# You can specify the yarn queue in the submission parameter by -confMap wds.linkis.yarnqueue=dwssh ./bin/linkis-cli -engineType spark-2.4.3 -codeType sql  -confMap wds.linkis.yarnqueue=dws -code "show databases"  -submitUser hadoop -proxyUser hadoop

More Linkis-Cli command parameter reference: Linkis-Cli usage

3.2 Submitting tasks through `Linkis SDK`#

Linkis provides SDK of Java and Scala to submit tasks to Linkis server. For details, please refer to JAVA SDK Manual. For Spark tasks you only need to modify the EngineConnType and CodeType parameters in Demo:

Map<String, Object> labels = new HashMap<String, Object>();labels.put(LabelKeyConstant.ENGINE_TYPE_KEY, "spark-2.4.3"); // required engineType Labellabels.put(LabelKeyConstant.USER_CREATOR_TYPE_KEY, "hadoop-IDE");// required execute user and creatorlabels.put(LabelKeyConstant.CODE_TYPE_KEY, "sql"); // required codeType py,sql,scala

4. Engine configuration instructions#

4.1 Default Configuration Description#

Configuration	Default	Required	Description
wds.linkis.rm.instance	10	No	Maximum number of concurrent engines
spark.executor.cores	1	No	Number of spark executor cores
spark.driver.memory	1g	no	maximum concurrent number of spark executor instances
spark.executor.memory	1g	No	spark executor memory size
wds.linkis.engineconn.max.free.time	1h	No	Engine idle exit time
spark.python.version	python2	no	python version

4.2 Queue resource configuration#

Because the execution of spark requires queue resources, you need to set up a queue that you can execute.

yarn

4.3 Configuration modification#

If the default parameters are not satisfied, there are the following ways to configure some basic parameters

4.3.1 Management Console Configuration#

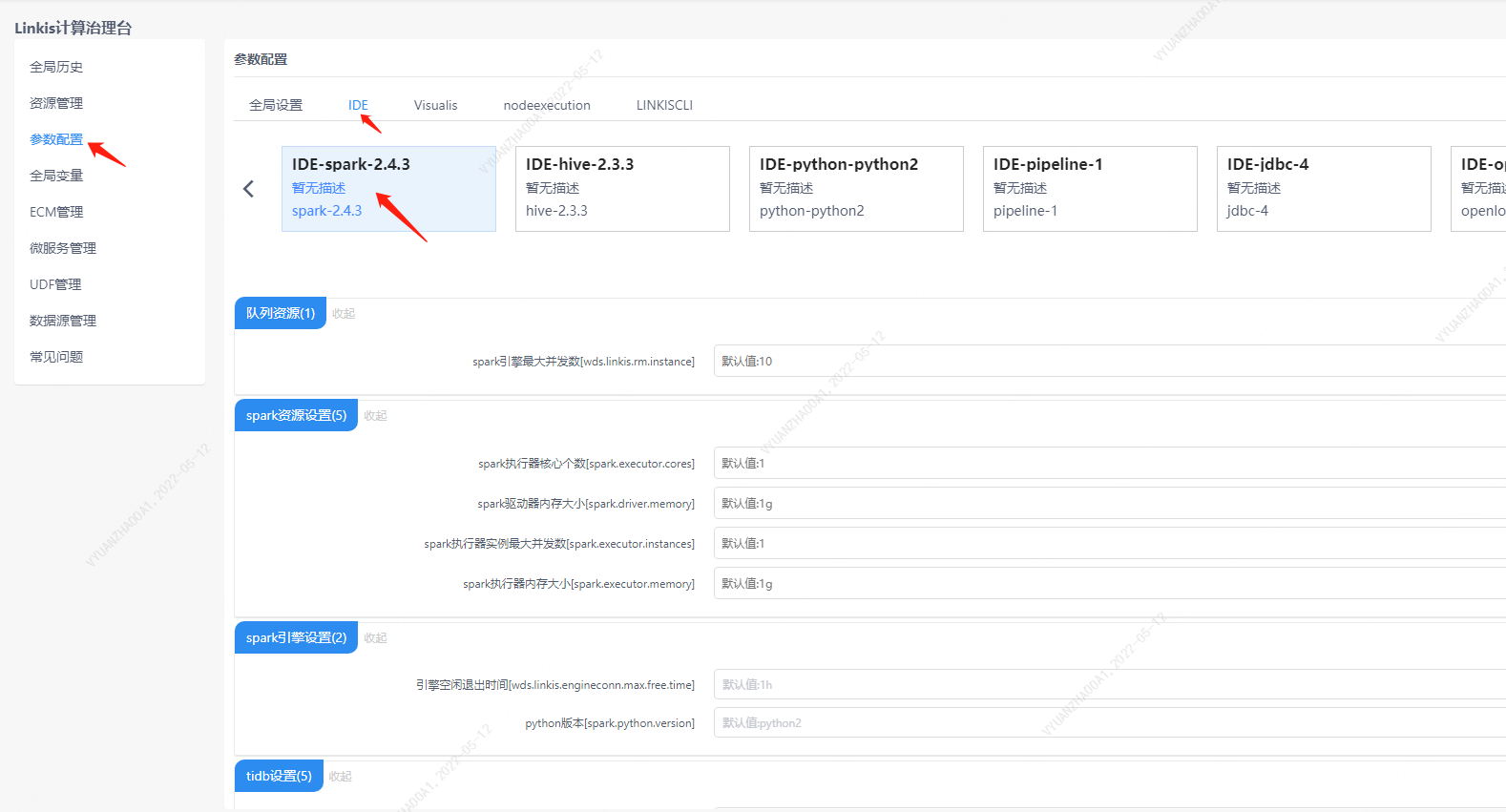

Users can customize settings, such as the number of spark sessions executor and executor memory. These parameters are for users to set their own spark parameters more freely, and other spark parameters can also be modified, such as the python version of pyspark, etc. spark

Note: After modifying the configuration under the IDE tag, you need to specify -creator IDE to take effect (other tags are similar), such as:

sh ./bin/linkis-cli -creator IDE \-engineType spark-2.4.3 -codeType sql \-code "show databases"  \-submitUser hadoop -proxyUser hadoop

4.3.2 Task interface configuration#

Submit the task interface, configure it through the parameter params.configuration.runtime

Example of http request parameters{    "executionContent": {"code": "show databases;", "runType":  "sql"},    "params": {                    "variable": {},                    "configuration": {                            "runtime": {                                "wds.linkis.rm.instance":"10"                                }                            }                    },    "labels": {        "engineType": "spark-2.4.3",        "userCreator": "hadoop-IDE"    }}

4.4 Engine related data sheet#

Linkis is managed through the engine tag, and the data table information involved is shown below.

linkis_ps_configuration_config_key: Insert the key and default values of the configuration parameters of the enginelinkis_cg_manager_label: insert engine label such as: spark-2.4.3linkis_ps_configuration_category: The directory association relationship of the insertion enginelinkis_ps_configuration_config_value: The configuration that the insertion engine needs to displaylinkis_ps_configuration_key_engine_relation: The relationship between the configuration item and the engine

The initial data in the table related to the spark engine is as follows

-- set variableSET @SPARK_LABEL="spark-2.4.3";SET @SPARK_ALL=CONCAT('*-*,',@SPARK_LABEL);SET @SPARK_IDE=CONCAT('*-IDE,',@SPARK_LABEL);
-- engine labelinsert into `linkis_cg_manager_label` (`label_key`, `label_value`, `label_feature`, `label_value_size`, `update_time`, `create_time`) VALUES ('combined_userCreator_engineType', @SPARK_ALL, 'OPTIONAL', 2, now(), now());insert into `linkis_cg_manager_label` (`label_key`, `label_value`, `label_feature`, `label_value_size`, `update_time`, `create_time`) VALUES ('combined_userCreator_engineType', @SPARK_IDE, 'OPTIONAL', 2, now(), now());
select @label_id := id from linkis_cg_manager_label where `label_value` = @SPARK_IDE;insert into linkis_ps_configuration_category (`label_id`, `level`) VALUES (@label_id, 2);
-- configuration keyINSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('wds.linkis.rm.instance', 'Range: 1-20, unit: each', 'Maximum concurrent number of spark engine', '10', 'NumInterval', '[1,20]', '0 ', '0', '1', 'queue resources', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.executor.instances', 'value range: 1-40, unit: individual', 'maximum concurrent number of spark executor instances', '1', 'NumInterval', '[1,40]', '0', '0', '2', 'spark resource settings', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.executor.cores', 'Value range: 1-8, unit: number', 'Number of spark executor cores', '1', 'NumInterval', '[1,8]', ' 0', '0', '1','spark resource settings', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.executor.memory', 'value range: 1-15, unit: G', 'spark executor memory size', '1g', 'Regex', '^([1-9]|1 [0-5])(G|g)$', '0', '0', '3', 'spark resource settings', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.driver.cores', 'Value range: only 1, unit: number', 'Number of spark driver cores', '1', 'NumInterval', '[1,1]', '0 ', '1', '1', 'spark resource settings', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.driver.memory', 'value range: 1-15, unit: G', 'spark driver memory size','1g', 'Regex', '^([1-9]|1[ 0-5])(G|g)$', '0', '0', '1', 'spark resource settings', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('wds.linkis.engineconn.max.free.time', 'Value range: 3m,15m,30m,1h,2h', 'Engine idle exit time','1h', 'OFT', '[\ "1h\",\"2h\",\"30m\",\"15m\",\"3m\"]', '0', '0', '1', 'spark engine settings', ' spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.tispark.pd.addresses', NULL, NULL, 'pd0:2379', 'None', NULL, '0', '0', '1', 'tidb设置', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.tispark.tidb.addr', NULL, NULL, 'tidb', 'None', NULL, '0', '0', '1', 'tidb设置', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.tispark.tidb.password', NULL, NULL, NULL, 'None', NULL, '0', '0', '1', 'tidb设置', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.tispark.tidb.port', NULL, NULL, '4000', 'None', NULL, '0', '0', '1', 'tidb设置', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.tispark.tidb.user', NULL, NULL, 'root', 'None', NULL, '0', '0', '1', 'tidb设置', 'spark');INSERT INTO `linkis_ps_configuration_config_key` (`key`, `description`, `name`, `default_value`, `validate_type`, `validate_range`, `is_hidden`, `is_advanced`, `level`, `treeName`, `engine_conn_type`) VALUES ('spark.python.version', 'Value range: python2,python3', 'python version','python2', 'OFT', '[\"python3\",\"python2\"]', ' 0', '0', '1', 'spark engine settings', 'spark');
-- key engine relationinsert into `linkis_ps_configuration_key_engine_relation` (`config_key_id`, `engine_type_label_id`)(select config.id as `config_key_id`, label.id AS `engine_type_label_id` FROM linkis_ps_configuration_config_key configINNER JOIN linkis_cg_manager_label label ON config.engine_conn_type = 'spark' and label.label_value = @SPARK_ALL);
-- engine default configurationinsert into `linkis_ps_configuration_config_value` (`config_key_id`, `config_value`, `config_label_id`)(select `relation`.`config_key_id` AS `config_key_id`, '' AS `config_value`, `relation`.`engine_type_label_id` AS `config_label_id` FROM linkis_ps_configuration_key_engine_relation relationINNER JOIN linkis_cg_manager_label label ON relation.engine_type_label_id = label.id AND label.label_value = @SPARK_ALL);
